P W/L-U Underground Overshot

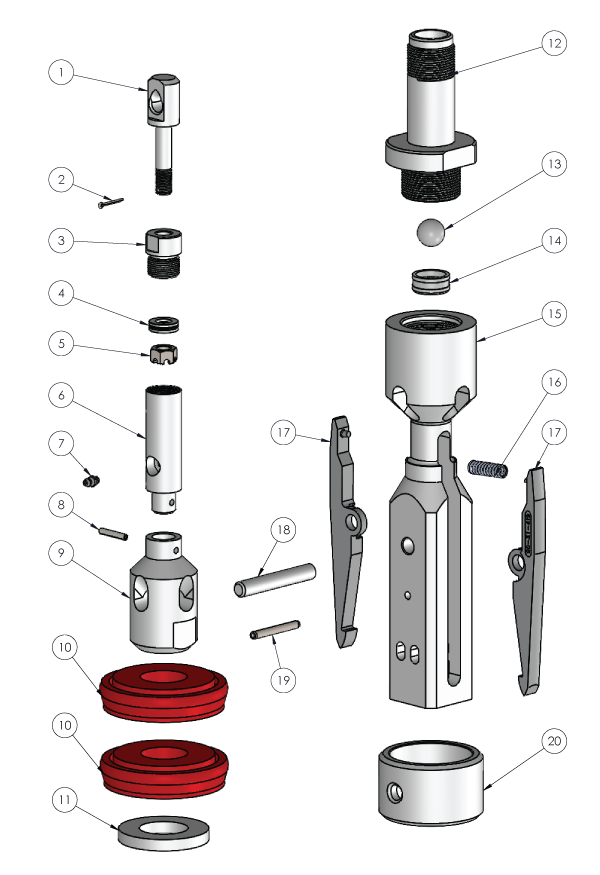

PRODUCT LISTING:


ITEM #	PART #	DESCRIPTION	QTY
ASM	90-32-602	PW/L-U OVERSHOT ASSEMBLY
1	90-31-201	SWIVEL, CABLE EYE BOLT	1
2	90-31-206	PIN, COTTER	1
3	90-31-202	COLLAR, CABLE SWIVEL	1
4	90-31-204	THRUST BEARING	1
5	90-31-205	1/2-UNF CASTLE NUT	1
6	90-31-307	BODY, CABLE SWIVEL	1
7	90-29-020	0.25IN-28 STRAIGHT FITTING	1
8	239-349	COILED PIN 0.1875 X 1.125	1
9	90-31-512	BODY, UPPER H-WL	1
10	90-29-653	LIP SEAL HWT PW-L	2
11	2546WF06	WASHER 1.5625 X 2.875 X 0.375	1
12	90-21-578	SEAT, LATCH BODY HW-L	1
13	90-21-421	BALL, LANDING INDICATOR	1
14	90-29-380	BUSHING, LANDING INDICATOR	1
15	90-31-555U	HEAD, OVERSHOT, HW-LU	1
16	90-31-416	COMP. SPRING OVERSHOT BNHP	1
17	90-31-419-TL	LIFTING DOG	2
18	90-31-658	DOWEL PIN PWL	1
19	476-060	SPRING PIN, Ø1/4" X 2" LONG	1
20	90-31-620	SLEEVE PWL OVERSHOT	1

90-32-602
