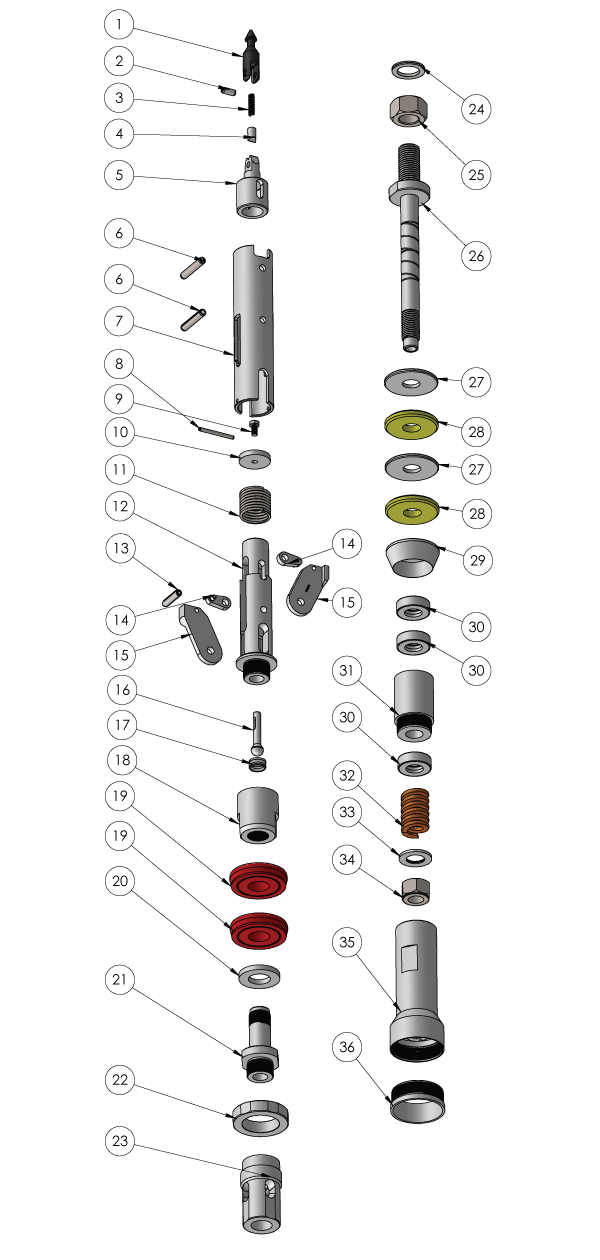

| ITEM # | PART # | DESCRIPTION | QTY |
| ASM | 90-20-601-LL | PW/L-U HEAD ASSEMBLY | |
| 1 | 90-22-301 | SPEARHEAD POINT, BNHP WL | 1 |
| 2 | 90-22-305 | COILED SPRING PIN | 1 |
| 3 | 90-22-302 | SPEARHEAD SPRING | 1 |
| 4 | 90-22-303 | DETENT, SPEARHEAD | 1 |
| 5 | 90-22-504 | BASE, SPEARHEAD H-WL | 1 |
| 6 | 476-088 | SPRING PIN, Ø1/2" X 2-3/4" LONG | 2 |
| 7 | 90-29-506 | LATCH RETRACTING CASE HW-L U | 1 |
| 8 | 90-29-537 | SPRING PIN, Ø1/4" X 2 3/4" LONG | 1 |
| 9 | 90-29-479 | NYLON BOLT | 1 |
| 10 | 90-29-509-4 | WASHER, SPRING RETAINER | 1 |
| 11 | 3548738 | COMPRESSION SPRING HW-LU | 1 |
| 12 | 90-29-509-1 | LATCH BODY UPPER HW-L U | 1 |
| 13 | 239-317 | COILED SPRING PIN, 1/2" X 2" | 1 |
| 14 | 3543999 | LINK HW-L U | 2 |
| 15 | 3543796 | LATCH PW-L | 2 |
| 16 | 3548544 | VALVE, PISTON H & P W-L | 1 |
| 17 | 90-29-380 | BUSHING, LANDING INDICATOR | 1 |
| 18 | 90-29-577 | ADAPTER, LATCH BODY HW-LU | 1 |
| 19 | 90-29-653 | LIP SEAL HWT PW-L | 2 |
| 20 | 2546WF06 | WASHER 1.5625 X 2.875 X 0.375 | 1 |
| 21 | 90-21-578 | SEAT, LATCH BODY HW-L | 1 |
| 22 | 90-29-609-2 | LANDING SHOULDER PWL | 1 |
| 23 | 90-21-609-3 | LATCH BODY, LOWER PWL | 1 |
| 24 | 24WL-NL | NORD-LOCK WASHER 1-1/2" & M39 | 1 |
| 25 | 24NHZG5 | NUT HEX 1-1/2-6 Z GR5 | 1 |
| 26 | 90-21-611 | SPINDLE, PWL | 1 |
| 27 | 90-21-613 | WASHER, SHUT OFF, PW-L | 2 |
| 28 | 90-21-612U | SHUT OFF VALVE, HARD PW-L | 2 |
| 29 | 90-21-615W | WASHER, TAPERED, SHUT OFF | 1 |
| 30 | 90-21-514 | SPINDLE BEARING, HW-L | 3 |
| 31 | 90-21-615 | BUSHING, SPINDLE PW-L | 1 |
| 32 | 90-29-589 | COMPRESSION SPRING PW-L | 1 |
| 33 | 90-21-687 | WASHER, THRUST | 1 |
| 34 | 20NLZG5 | NUT HEX, NYLOCK 1-1/4-7 Z GR5 | 1 |
| 35 | 90-21-619 | CAP ASSY PW-L INNERTUBE | 1 |
| 36 | 90-21-660 | PROTECTOR, INNERTUBE CAP, PW-L | 1 |
