Sheave Blocks
Manufactured by TIME, the TLB series of sheave blocks are built for hard service under tough underground mining conditions. To be used only in straight pull applications.
FEATURES:
- Safety hook releases by turning hook or block through 90°.
- Hook key holds lock together. No loose parts like toggle pins to get lost.
- Wide throat opening to pass square knots or splices in wire rope.
- Wheel is deeply recessed into side frames to prevent rope fouling.
- Blocks are fitted with sealed high load capacity ball bearings. Dust seals next to bearing increase protection.
- Two bottom shroud bolts ensure rigidity of side frames.
- Ductile castings, side frames and wheels.
- Medium manganese alloy side frames, heat treated for maximum wear.
- Magnetic qualities.
- Requires no lubrication – sealed ball bearings with extra dust shields
| SHEAVE BLOCK | 6" | 8" |
| WEIGHT | 20 LBS | 37 LBS |
| MAX CABLE DIAMETER | 5/8” | 5/8” |
| CAPACITY | 3 TON | 4 TON |
PRODUCT LISTING:
PART # DESCRIPTION TLB-6H 6" SHEAVE BLOCKS TLB-8H 8" SHEAVE BLOCKS

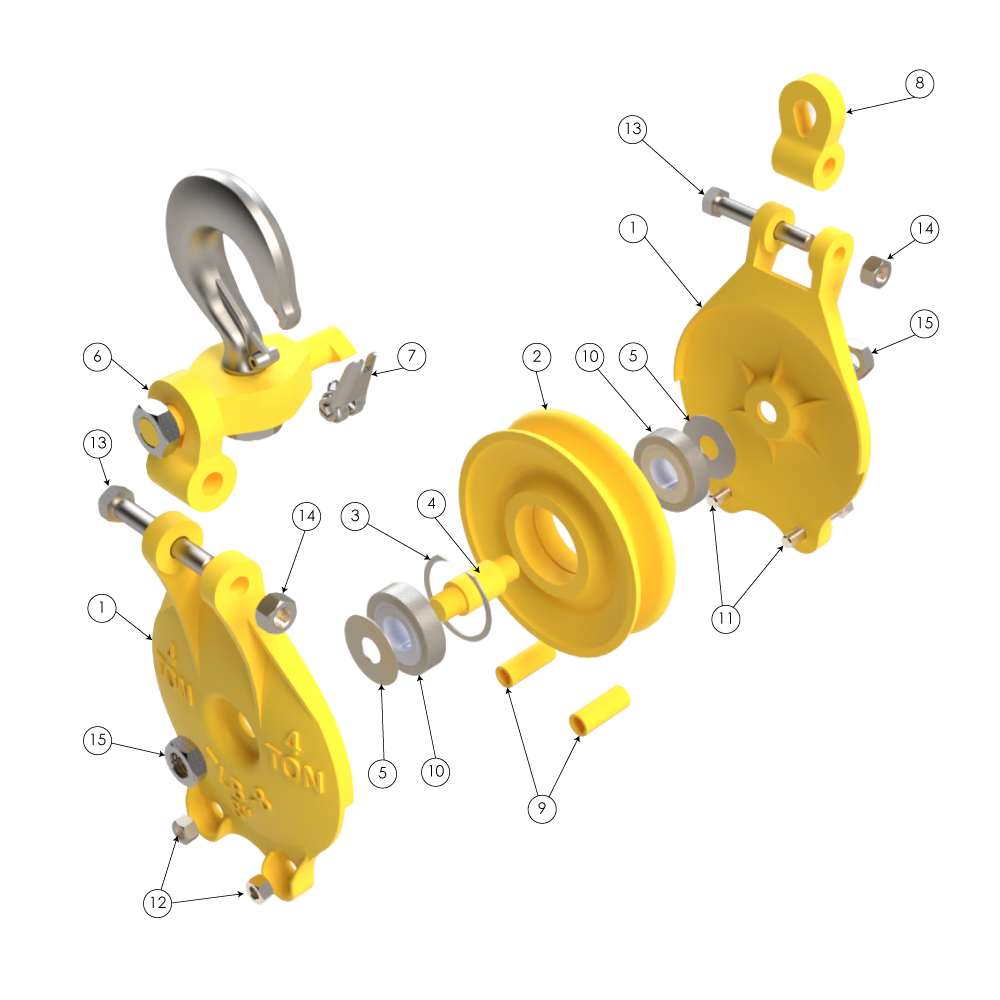

Item # TLB-6H TLB-8H Description Part # Qty Part # Qty 1 502-01 2 505-01 2 Side Frame Machined 2 502-02 1 505-02 1 Sheave Wheel Machined 3 502-03 1 505-03 1 Retaining Ring 4 502-04 1 505-04 1 Standard Shaft 5 502-05 1 505-05 2 Bearing Spacer 6 502-07 1 505-07 1 Swivel Hook Assembly 7 502-20 1 505-19 1 Latch Kit 8 502-22 1 505-08 1 Clevis Hook Link 9 502-25 2 505-25 2 Spacer 10 720-01 2 720-02 2 Bearing 11 0640BHHG5 2 0848BHHZG5 2 Spacer Bolt 12 06NH 2 08NHGR5 2 Spacer Nut 13 1240BHHZG5 2 1064BHHZGR5 2 Hook Link Bolt 14 12NH 2 10NH 2 Hook Link Nut 15 14NJNFG5 2 14NJNFG5 2 Shaft Nut
